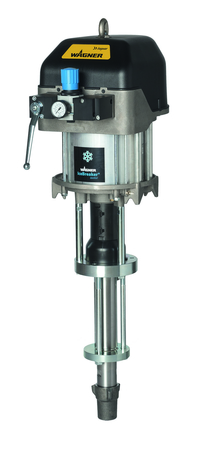

- Jaguar 75-150 -

High-pressure piston pumps

  • High-pressure piston pump, stainless steel, for Airless applications up to 530 bar and 9 L/min. Extremely robust and ideal for heavy corrosion protection.

Technical data
Multiplication ratio 75 :1
Operating pressure 530 bar, 7687 PSI
Volumetric flow per double stroke 150 cm³/DS, 9,15 in³/DH
Volumetric flow per 60 double strokes 9 l/min
Max. stroke rate 60 DS/min
Material inlet F–G 1 1/2‘‘
Material outlet M–M 24x1,5
Air inlet pressure 2,5 – 7,1 bar, 36 – 103 PSI
Sound level at 6 bar air pressure 81 dB(A)
Material temperature 5 - 80 °C, 41 - 176 °F
Ambient temperature 5 – 60 °C, 41 – 140 °F
Material pH 3.5 – 9 pH
Max. material pressure at pump inlet 20 bar, 290 PSI
Allowable inclination ±10 °
Weight 53,0 kg, 116.9 lb
